Array
(
[Family] => Luminarias
[Código agrupador (Modelo)] => AJ PANEL V2
[Modelo] => AJ PANEL V2
[Categoría y Serie] => 0111-3
[Descripción comercial (Modelo)] => This next-generation, adjustable circular LED downlight is designed for maximum versatility in lighting projects. Its innovative system allows it to adapt to different cutout diameters (between 50 and 200 mm), facilitating the direct replacement of existing fixtures without the need for additional work.nIt features color temperature selection (CCT) to adjust the ambiance according to the needs of the space, along with dual installation options that allow for recessed or surface mounting. Its ultra-thin design provides a modern and discreet aesthetic, integrating perfectly into any environment.nManufactured with high-efficiency LED technology, it provides uniform illumination with a wide beam angle and excellent energy performance, guaranteeing durability and low maintenance.
[Imagen de producto (TH)] => https://d7rh5s3nxmpy4.cloudfront.net/CMP2379/PR2303BI14214_AJ_PANEL_V2_AJ_PANEL_V2_TH.jpg
[Imagen de producto (THM)] => https://d7rh5s3nxmpy4.cloudfront.net/CMP2379/PR2303BI14214_AJ_PANEL_V2_AJ_PANEL_V2_THM.jpg
[Imagen de producto (IMD)] => https://d7rh5s3nxmpy4.cloudfront.net/CMP2379/PR2303BI14214_AJ_PANEL_V2_AJ_PANEL_V2_IMD.jpg
[Imagen de producto (ORG)] => https://d7rh5s3nxmpy4.cloudfront.net/CMP2379/1/AJPANELV22.jpg
[Gama] => TOP
[Categorias Web (nuevo)] => 0111-3
[Productos Relacionados] => Adjustable Round Panel,Adjustable Square Panel
[Estatus] => Visible
[Beneficios 1] => Compatible with flush or surface mounting to suit any project.
[Beneficios 2] => Ultra-slim design with high-performance, low-consumption LED technology
[Beneficios 3] => Adjustable cutting diameter that facilitates replacements without modifications to the roof.
[Imagen portada producto] => https://d7rh5s3nxmpy4.cloudfront.net/CMP2379/1/AJ-PANEL-V2.jpg
[Vida útil] =>
L70
B
B50
ºC
25
Hrs
30000
[Clase de Aislamiento] => II
[Grado de protección IK] => IK04
[Tipo corriente] => AC
[Frequencia] => 50/60
[Marca chip] => Hongli
[Rango de Temperatura (Uso) (°C)] => -20ºC ~ +40ºC
[Rango de Temperatura (conservación) (°C)] => -40ºC ~ +60ºC
[Maquetación automática] => Downlight
[Imagen producto_1] => https://d7rh5s3nxmpy4.cloudfront.net/CMP2379/2/AJPANELV22.jpg
[Imagen portada producto_1] => https://d7rh5s3nxmpy4.cloudfront.net/CMP2379/2/AJPANELV22.jpg
[DISTR] => ESP,PT
[Products status] => Visible
[SKU] => AJPANELV228CCT
[Etiquetas] => Downlight,ModeloOn
[Descripción] => AJ PANEL V2 Ø:336mm Cut:65-310mm 15| 22 | 28W 93.3lm/w 220-240V 3000/4000/5700K 110° IP20 White
[Descripción automática] => AJ PANEL V2 Ø:336mm Cut:65-310mm 15| 22 | 28W 93.3lm/w 220-240V 3000/4000/5700K 110° IP20 White
[Imagen de producto (png)] => https://d7rh5s3nxmpy4.cloudfront.net/CMP2379/1/AJPANELV22.jpg
[Ficha técnica Variante] => https://d7rh5s3nxmpy4.cloudfront.net/CMP2379/files/2/AJPANELV228CCT-ROBLAN_TDS_Es_Pt.pdf
[Código EAN] => 8435298046959
[Line drawing] => https://d7rh5s3nxmpy4.cloudfront.net/CMP2379/4/AJPANELV220CCT_LINED.jpg
[Peso producto (kg)] => 0.38
[Dim] => No
[Apertura (°)] => 110
[Kelvin (Temperatura Luz)] => 3000/4000/5700
[Alto producto (mm) H] => 24.7
[Diámetro producto (mm) D] => 336
[Voltaje (V)] => 220-240
[Factor potencia] => >0,9
[IP] => IP20
[Consumo de energía en modo encendido (Kwh/1000h)] => 28
[Regulación Tono] => No
[Uso] => Interno
[Color luz] => Tunable
[Índice Reproducción Cromática] => 80
[Control] => DIP Switch
[Garantía ROBLAN (años)] => 3
[Clase de aislamiento] => II
[Material] => Policarbonato,Aluminio
[Color] => Blanco
[Formato] => Redondo
[Uso diario recomendado (h)] => 12
[Uso año] => 4380
[Tipo de Led] => 2835
[LEDs/unidad] => 192
[Marca chip LED] => Hongli
[Unidades Embalaje Master] => 10
[G Weight Carton (Kg)] => 11
[N Weight Carton (Kg)] => 10
[Tipo de fuente de alimentación] => Roblan
[Tipos de instalación] => Empotrado en relieve
[Sensor] => No
[Ancho Unit Box (cm)] => 3.6
[Alto Unit Box (cm)] => 38
[Profundo Unit Box (cm)] => 34.5
[Profundo cartón (cm)] => 38.5
[Ancho cartón (cm)] => 36.3
[Alto cartón (cm)] => 40
[Accesor_material] => RING28AJPANB,RING28AJPANS
[Lugar de instalación] => Techo
[W Seleccionable] => 15| 22 | 28
[Novedad] => 0
[Energy efficiency class (Nuevo)] => E
[Light Source Useful luminous flux (lm)] => 3197
[EPREL page link] => https://eprel.ec.europa.eu/qr/
[Correlated colour temperature type] => Single Value
[Light Source Power On (W)] => 23.69
[EEL Digital arrow] => https://d7rh5s3nxmpy4.cloudfront.net/CMP2379/65/E_right_colour.png
[Archivo fotométrico] => https://d7rh5s3nxmpy4.cloudfront.net/CMP2379/files/1/ROBLAN-AJPANELV228CCT.zip
[Accesorios Web] => RING28AJPANB,RING28AJPANS
[Info Lm Regulable] => 15/22/28W | 1200-2500lm | 3000/4000/5700K

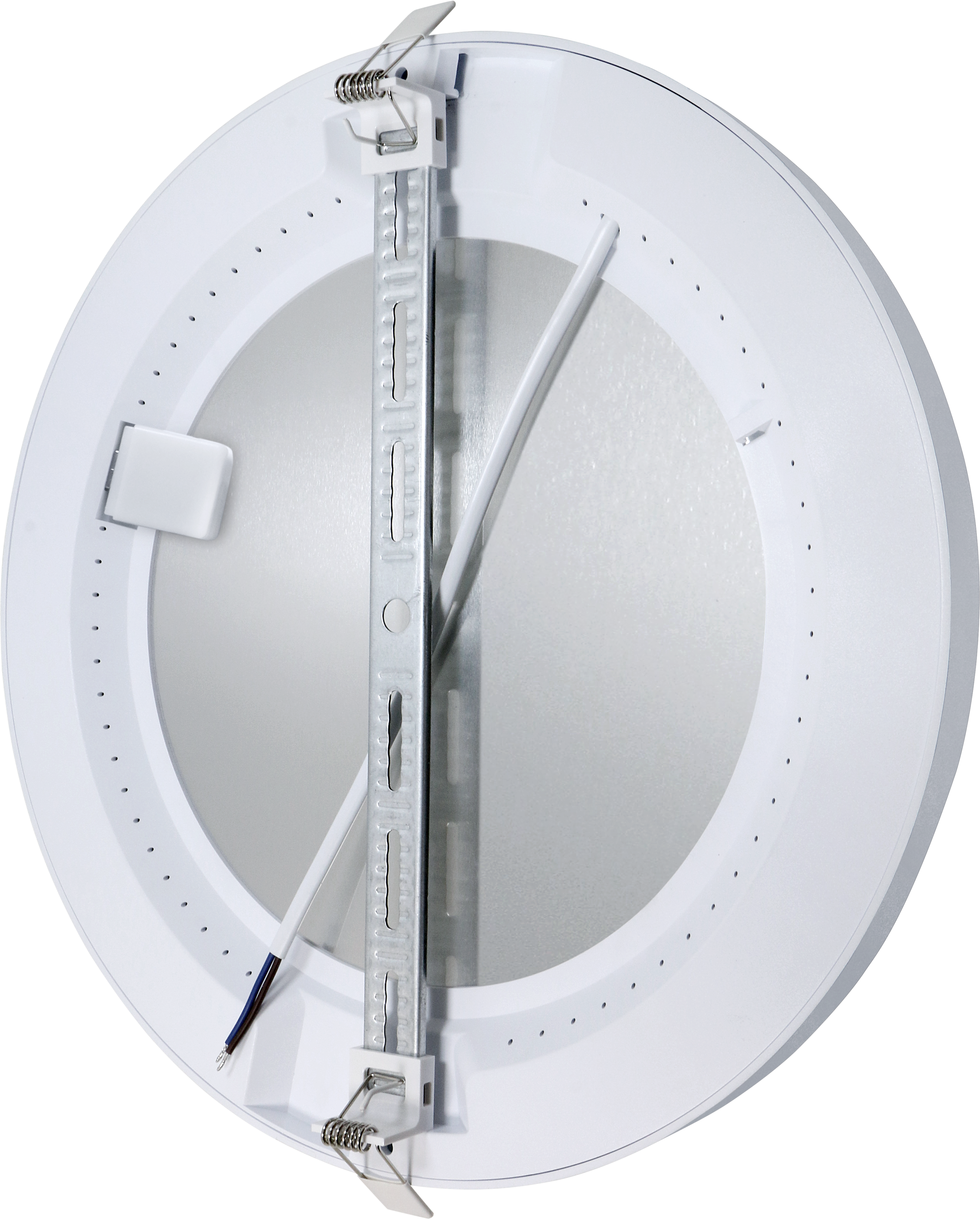

[Imagenes adicionales 2] => https://d7rh5s3nxmpy4.cloudfront.net/CMP2379/4/D330MM~1.PNG
[Descripción Autom] => 1
[Medida Corte de instalación (m)] => 65-310
[Tabla de Flujos y Potencias] =>
